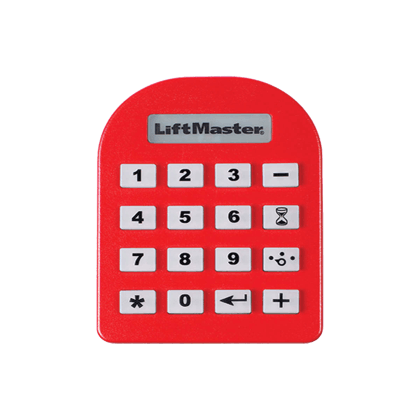

PPRP
Passport™ Proximity Radio Programmer
Passport™ Proximity Radio Programmer
- Hand-held programmer to be used with the Passport™ Stand-Alone Proximity Card Reader (model PPLX).
- Eliminates The Need To Bring A Laptop Computer to Program The Stand-Alone Unit.

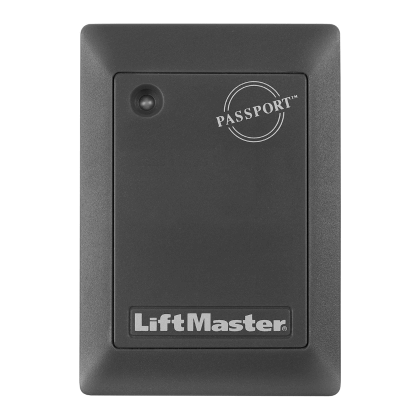

PPLX
Passport Stand-Alone Proximity Reader
- Greater Control - Programmable as Stand-Alone or Wiegand Pass-Through.
- Increased Convenience - Programs Simple Deletion of Lost or Stolen Cards Without the Need to Re-Program the Entire User Set.
- Time Saving - System Allows for Up to 50,000 Users Proximity Cards or Keyfobs to be Added in Minutes.
- Entry level access control and security for small to medium businesses.
- Designed to Withstand Outdoor Environments - Rugged and Durable Weatherproof Enclosure (IP67 Rated).
- Easily Mounted to Any Interior/Exterior surface, or Installed in Any Single Gang Electrical Enclosure.
- Stand-Alone - No Need for a Full Access Control System.
- Easy to Program - Use hand-held programmer (model PPRP). Sold Separately.
SPECIFICATIONS
| Local User Capacity | 50000 |
| Max Number Of Gates/Doors of control (Each) | 1 |
| Operating Temperature | -40°F to 158°F (-40°C to 70°C) |
| Wiegand Output Data Format | 26, 30 and 34 Bit |
| Unit Interface Capabilities | Card |
| Stand Alone | Yes |

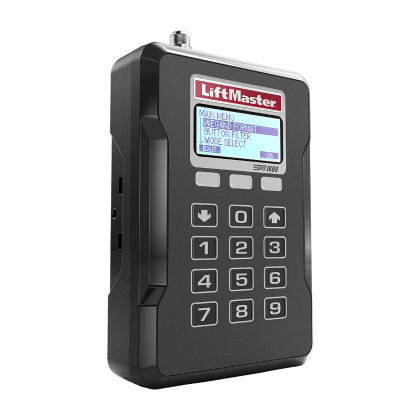

STAR1000
Commercial Receiver
- Easy to Program - Using The LCD Programming Display.
- Time Saving - Allows you to block learn Passport Lite Remote Controls (10 or 100) a box at a Time.
- Virtually Eliminates Interference And Improves Range To Access Your Home Or Facility Security+ 2.0® Receiver compatible with all LiftMaster® Security+ 2.0 Remote Controls and operates On Narrowband, Tri-band (310, 315 and 390 MHz) frequencies.
- Greater Control - Temporarily suspend users without deleting their Remote Control from memory.
- Increased Convenience - Ability to re-use the memory slot when you delete a Single Remote Control.
- Designed For Outdoor Environments With reliable IP44 rated housing.
- Never Lose Your Programmed Remote Control Data And easily update a new Radio using the removable backup memory module. Also ideal for copying into a second receiver for another access point.
- Holds Up To 1,000 Remote Controls.
- Delete Single Remote Control - Easy to Add, Block and Delete Individual Remotes.
- High-Capacity Gate and Commercial Door Operator Access Control.
- Functions As A Stand-Alone Controller.
SPECIFICATIONS
| Relay Output | 1 (N/O and COM) |
| Wiegand Output Data Format | N/A |
| Frequency | Security+ 2.0 (Tri-band - 310, 315 & 390 MHz) |
| Operating Temperature | -40°F to 149°F (-40°C to 65°C) |
| System Capacity | 1000 |

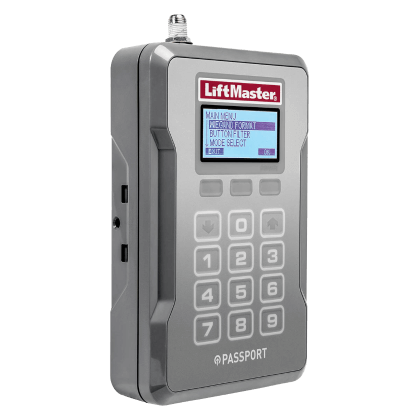

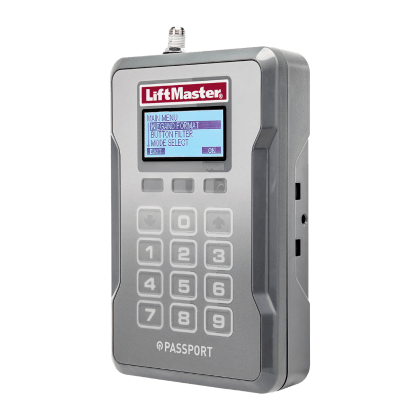

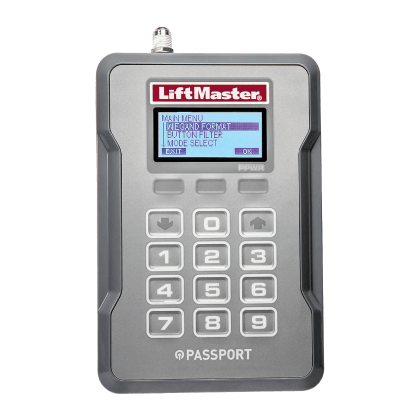

PPWR
Credentialed Commercial Access Receiver
- Easy to Program - Facility code and Bit Format settings to Access Control System using the LCD programming display.
- Virtually Eliminates Interference And Improves Range To Access Your Home Or Facility Security+ 2.0® Receiver Compatible. Operates on Narrowband, Tri-band (310, 315 and 390 MHz) frequencies.
- Increased Convenience - Works with Passport 1- and 3-Button Remote Controls to easily manage all entrances.
- Greater Control - Compatible with all standard Wiegand Protocols to handle all access of your property
- Designed For Outdoor Environments With reliable IP44 rated housing.
- Never Lose Your Programmed Remote Control Data And easily update a new Radio using the removable backup memory module. Also ideal for copying into a second receiver for another access point.
- Credentialed Access Control For Gated Communities And Commercial Properties.
- Integrated Credentialed Solution For All Access Needs.
- Superior Range And Performance Virtually Eliminates Interference And Improves Range.
SPECIFICATIONS
| Relay Output | N/A |
| Wiegand Output Data Format | 26,30,31,34 and 50 Bit |
| Frequency | Security+ 2.0 (Tri-band - 310, 315 & 390 MHz) |
| Operating Temperature | -40°F to 149°F (-40°C to 65°C) |
| System Capacity | 12,000 Buffer |

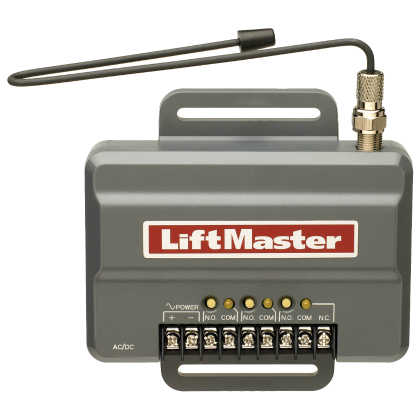

850LM
Universal Receiver, Security+ 2.0
- Easy to Program - Facility code and Bit Format settings to Access Control System using the LCD programming display.
- Virtually Eliminates Interference And Improves Range To Access Your Home Or Facility Security+ 2.0® Receiver Compatible. Operates on Narrowband, Tri-band (310, 315 and 390 MHz) frequencies.
- Increased Convenience - Works with Passport 1- and 3-Button Remote Controls to easily manage all entrances.
- Greater Control - Compatible with all standard Wiegand Protocols to handle all access of your property
- Designed For Outdoor Environments With reliable IP44 rated housing.
- Never Lose Your Programmed Remote Control Data And easily update a new Radio using the removable backup memory module. Also ideal for copying into a second receiver for another access point.
- Credentialed Access Control For Gated Communities And Commercial Properties.
- Integrated Credentialed Solution For All Access Needs.
- Superior Range And Performance Virtually Eliminates Interference And Improves Range.
SPECIFICATIONS
| Relay Output | 3 (N/O and COM) |
| Wiegand Output Data Format | N/A |
| Frequency | SSecurity+ 2.0 (Tri-band - 310, 315 & 390 MHz) |
| Operating Temperature | -31°F to 149°F (-35°C to 65°C) |
| System Capacity | Channel 1 (50 Remotes) - Channel 2 (20 Remotes) - Channel 3 (20 Remotes)" |

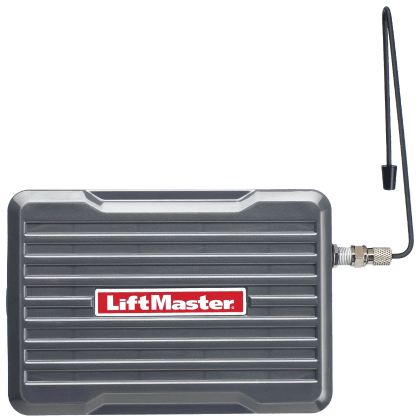

860LM
Universal Weather Resistant Receiver Security+ 2.0
- Virtually Eliminates Interference And Improves Range To Access Your Home Or Facility Security+ 2.0® Receiver compatible with commercial LiftMaster® Security+ 2.0 Remote Controls and operates On Narrowband, Tri-band (310, 315 and 390 MHz) frequencies.
- Increased Convenience - Works with Commercial LiftMaster Security+ 2.0 Remote Controls.
- Universal Radio Solution For Retrofits Or Updates - Works with existing Gate Operators manufactured by LiftMaster Or others. This Receiver is not compatible with myQ enable Garage Door Openers.
- Weather-Resistant Universal Reciever For Commercial Applications.
- Compact Design Fits into most Gate And Commercial Door Operators.
- Security Encrypted Code For Extra Dependability.
- Manage Multiple Access Points With A Single Receiver.
- Superior Range And Performance Virtually Eliminates Interference And Improves Range.
- Greater Control - 3 Channels provided expanded remote control capacity And/Or Open/Close/Stop functionality.
SPECIFICATIONS
| Relay Output | 3 (N/O and COM) |
| Wiegand Output Data Format | N/A |
| Frequency | Security+ 2.0 (Tri-band - 310, 315 & 390 MHz) |
| Operating Temperature | -31°F to 149°F (-35°C to 65°C) |
| System Capacity | Channel 1 (50 Remotes) - Channel 2 (50 Remotes) - Channel 3 (50 Remotes)" |

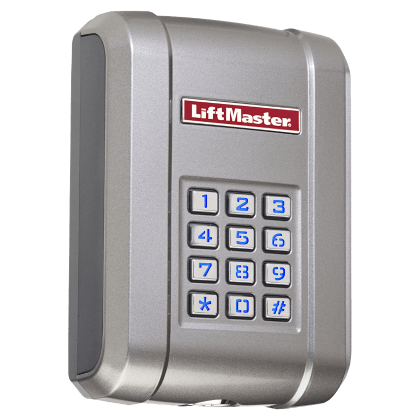

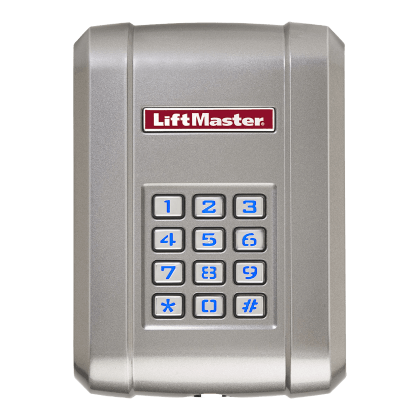

KPW250
Wireless Keypad
- Easy to Use and See Cool Blue Backlit Metal Keys.
- Increased Convenience Party Mode** Allows Flexibility For Guest Management.
- PARTY MODE (GATE HOLD OPEN) FEATURE ON ALL LIFTMASTER GATE OPERATORS WITH NEW FIRMWARE 4.2 Time Saving
- Easy Wireless Installation, No Added Cost For Wires.
- Extended Battery Life 9V Lithium Battery Provides Extended Life In Harsh Temperatures.
- Greater Control - Constant Pressure Override Provides A Simple, Keypad-Based Method To Manually Operate Gate Securely Until Service Technician Arrives.
- Designed to Withstand Outdoor Environments Weatherproof to Withstand Tough Outdoor Environments With Fully Sealed Electronics Meeting NEMA 4X Water-Protection Requirements.
- Protects from Unwanted Entry PINs Can Be Set For 1-9 Uses Each And Can Easily Remove A Single PIN While Maintaining Full Access For Other Users.
- Additional Protection Keyed Lock Provides Easy Installation And Protects Electronics Including Completely Enclosed Internal Antenna Maintaining Vandal Resistance And Range Performance.
- Versatile Placement Security+ 2.0® Compatibility Safeguards Access With An Encrypted Tri-Band Signal To Virtually Eliminate Interference And Offer Extended Range.
SPECIFICATIONS
| Local User Capacity | 250 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Stand Alone | Yes |
| Max Number Of Gates/Doors of control (Each) | 1 |
| Unit Interface Capabilities | PIN |
| Wireless Communication | Yes, when paired with LiftMaster UL® 325 Listed Gate Operators with burgundy control boards. |

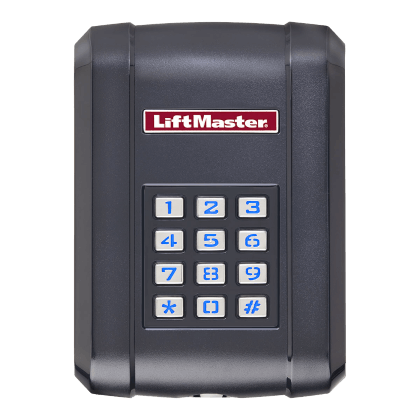

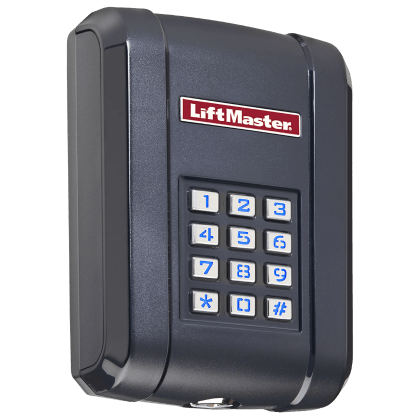

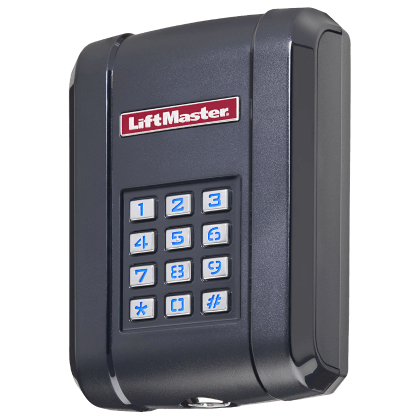

KPW5
Wireless Keypad
- Easy to Use and See Cool Blue Backlit Metal Keys.
- Increased Convenience Party Mode** Allows Flexibility For Guest Management.
- PARTY MODE (GATE HOLD OPEN) FEATURE ON ALL LIFTMASTER GATE OPERATORS WITH NEW FIRMWARE 4.2 Time Saving
- Additional Protection Keyed Lock Provides Easy Installation And Protects Electronics Including Completely Enclosed Internal Antenna Maintaining Vandal Resistance And Range Performance.
- Greater Control - Constant Pressure Override Provides A Simple, Keypad-Based Method To Manually Operate Gate Securely Until Service Technician Arrives.
- Designed to Withstand Outdoor Environments Weatherproof to Withstand Tough Outdoor Environments With Fully Sealed Electronics Meeting NEMA 4X Water-Protection Requirements.
- Protects from Unwanted Entry PINs Can Be Set For 1-9 Uses Each And Can Easily Remove A Single PIN While Maintaining Full Access For Other Users.
- Additional Protection Keyed Lock Provides Easy Installation And Protects Electronics Including Completely Enclosed Internal Antenna Maintaining Vandal Resistance And Range Performance.
- Versatile Placement Security+ 2.0® Compatibility Safeguards Access With An Encrypted Tri-Band Signal To Virtually Eliminate Interference And Offer Extended Range.
SPECIFICATIONS
| Local User Capacity | 5 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Stand Alone | Yes |
| Max Number Of Gates/Doors of control (Each) | 1 |
| Wireless Communication | Yes, when paired with LiftMaster UL® 325 Listed Gate Operators with burgundy control boards. |

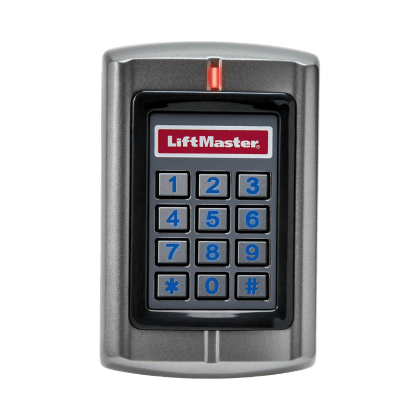

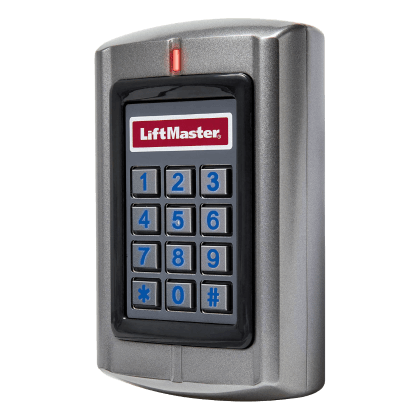

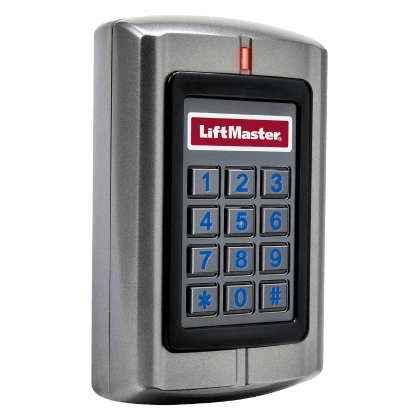

KPR2000S
Wired Keypad And Proximity Reader
- Easy to Use and See Cool Blue Backlit Metal Keys.
- Increased Convenience Ability To Hold Gate Or Door Open For An Extended Period With Latch Mode.
- Time Saving Allows Block Card Enrollment.
- Greater Control - Programmable Relay With Adjustable Contact Time Makes This Ideal For A Gate Operator, Commercial Door Operator, Door Strike Or Solenoid Lock.
- Single-Entry Multi-Function Access Controller With Integrated Keypad And Card Reader.
- Designed to Withstand Outdoor Environments Sleek, Low-Profile Weatherproof Design. Rugged Vandal-Resistant Metal Enclousure with a Sealed, Weatherpoof Keypad.
- Expandable System Network To Another KPR2000, PPWR Receiver Or Most Access Control Systems.
- Protects from Unwanted Entry Anti-Tamper Alarm Alerts You When Someone Has Attempted To Open the Case While Powered.
- Additional Protection Set Multiple Security Alarms With Integrated Alarm Buzzer And Output.
SPECIFICATIONS
| Local User Capacity | 2000 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Stand Alone | Yes |
| Max Number Of Gates/Doors of control (Each) | 1 |
| Wiegand Output Data Format | 26 and 30 Bit, ASCII for PIN |
| Unit Interface Capabilities | Card/PIN |
